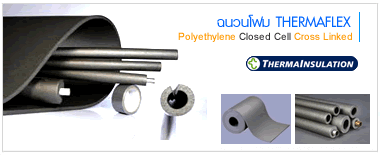

ฉนวน Polyethylene
|
Thermaflex
For an optimal protection and efficiency Thermaflex FR is ideal for the insulation of hot water,cold water, cooling and air conditioning systems.
This high-quality product, made of polyethylene, can be recycled completely and does not contain any harmful (H) CFC's (Ozone Depleting Potential and Global Warming Potential = 0).
Thermaflex FR has been developed on the basis of intensive research and professional users' experiences.
Because of these qualities Thermaflex FR is often prescribed in projects. Thermaflex FR consists of the following system :
Technical Properties
Thermaflex FR has a closed call structure and a very good insulation value (0.038 W/m.K at 40 C). The high insulation effciency certainly makes it worthwhile to invest in Thermaflex FR. Due to the closed cell structure Thermaflex FR also has a high water vapour diffusion resistance, resulting in optimum condensation protection. The physical properties of Thermaflex FR were tested in accordance with international standards and objective quality control is guaranteed by certified institutions. ln short, with Thermaflex FR you will have a technical insulation material that meets the highest requirements.
|
 ชนิดหุ้มท่อ / Pipe Cover |
|
ขนาดท่อ
Diameter |
ความยาว
Length |
ความหนา
THICKNESS |
|
16 mm . ( 1/4")
to
114mm. ( 4") |
Standard Length
2 m. per Tube
|
1/4" (6mm.), 3/8" (9mm.), 1/2 (13mm.), 3/4" (20mm.), 1" (25mm.), 1.1/4" (30 mm.).
|
* Please check avialable size and thickness before order |
|
| ชนิดแผ่นม้วน / Board Insulation |
|
ขนาด
Size
|
ความหนา
THICKNESS |
|
| 1.2 m. x 50 m. |
1/4" (6mm.), 3/8" (9mm.), 1/2 (13mm.), 3/4" (20mm.), 1" (25mm.), 1.1/4" (30 mm.).
|
|
| |
|
