ฉนวนแคลเซียมซิลิเกต (ซิลิก้า)
Calcium Silicate
Calcium Silicate Insulation Material is consisted of tobermolite crystal with excellent heat resistance. It is premolded into board and pipe cover. It is a white, asbestos free, and rigid insulation product which is used for thermal equipment, vessel and pipe in power station, chemical plant and other process industries.
It is an ideal thermal insulation material with the features of low density, low thermal conductivity, high service temperature, rigid and hard, high compressive and bendig strength, non-corrosive, non-irritant, non-toxic, harmiess, chemically stable and easy application.
|
|
|
 |
ฉนวนแคลเซียมซิลิเกต / Calcium Silicate
|
CALCIUM SILICATE is an insulation material molded by reacting calcium silicate powder with high pressure heat, and mixing it with inorganic fiber. It is a non asbestos, high performance insulating material designed to provide excellent thermal and heat resistance insulation of heated piping systems, equipments, process vessels used in power stations, petrochernical plants, petroleum refirieries, heat distributing systems and other process industries.
Bencfits and Features
 High Efficiency
High Insulating Effect
Asbestos Free
Superior Strength
Non corrosive
Light Weight |
| ชนิดหุ้มท่อ / Pipe Cover |
|
ขนาดท่อ
Diameter |
ความยาว
Length |
ความหนา
THICKNESS |
|
16 mm . ( 1/4)
to
4800mm. ( 188) |
600 mm.
610mm. |
25mm. 30mm. 40mm. 50mm.
60mm. 65mm. 70mm. 75mm.
80mm. 90mm.
|
* Please check avialable size and thickness before order |
|

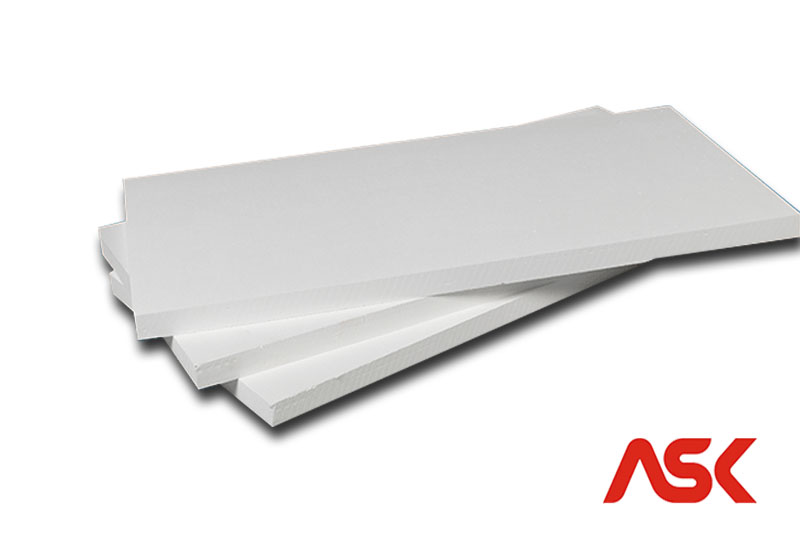

| ชนิดแผ่น / Board Insulation |
|
ขนาดท่อ
Diameter |
ความหนา
THICKNESS |
|
600x150 mm.
600x300 mm. |
25mm. 30mm. 40mm. 50mm. 60mm. 65mm. 70mm. 75mm. 80mm. 90mm.
|
|
| |
|
